How do you change the functions?
Simply twist the end of your Multi Spray Gun, this will go through all of the 5 spray patterns on the gun.
Can I connect a hose directly to the gun or do I need a connector?
You will need a connector. We recommend using an Aquastop Connector.
What connector do I need so that I can use this with my Hozelock hose?
If your hose already has Hozelock compatible connectors on both ends, you can connect this gun directly to it - it will simply "Click & Connect" onto the hose connector.
If you have no connectors fitted to your hose, an Aquastop Connector is recommended.

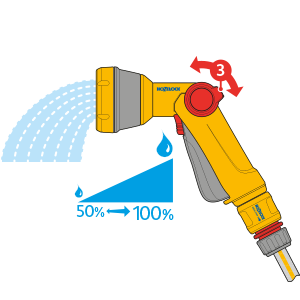

How do I adjust the flow rate?
You can adjust the flow control with the red lever on the top of the spray gun. To decrease the flow pull back. To increase the flow rate, push forwards.

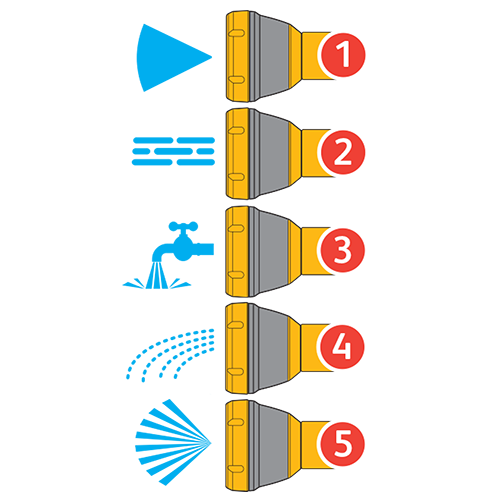

What do all the different spray patterns do?
Five spray patterns – Cone for delicate watering (1), Powerful jet for cleaning (2), Fast Fill for filling buckets and watering cans (3), Fine Rose for gently watering seedlings (4) and Flat for rinsing soap off cars (5).

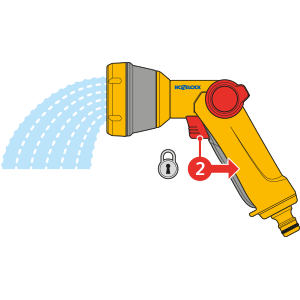

How do I turn the gun off?
Please check the following:
1. Turn the tap off, or if you have an Aquastop connector, remove the gun.
2. Now, check if the lock is engaged. Hold the gun in your hand and squeeze the trigger.
3. Re-connect and turn on the water supply. This should now have released the lock and your trigger will operate as normal.
This lock is designed to make garden watering easier. Remember disengage the trigger when finished watering.
Can this be used to wash a car?
Yes. This gun is recommended for washing cars.
Will this fit on our expanding hose or is it just for a PVC garden hose?
This gun can be used on any Hozelock hose, including expanding hoses.
Can this gun be used for prolonged use? i.e. Filling a pool?
Yes, this gun has a lockable rear soft-touch trigger for prolonged use.
My gun occasionally leak. How do I stop it from leaking?
1. Check the connection. Ensure you have used the correct hose end connector to connect your gun to the hose. An Aquastop Connector is recommended.
2. Is the gun dirty or blocked? If it is, please soak in a 50/50 mix of warm water and vinegar, as the problem may be related to either a rubber seal or a build-up of mineral deposits or sediment in the gun. Ideally the gun should be soaked for 30–40 minutes.
3. Check your O ring - it it worn? If it is, please replace the O-ring. You can purchase O-Rings and Washers from our Spares website.
4. Check the water flow - this may need to be reduced.
If this does not resolve the issue, then the gun could be faulty. Please contact consumer services by emailing support@hozelock.zendesk.com. Please ensure you have your original proof of purchase available.
What spares do you have for this product?
There are five O-Rings which can be replaced on this gun. They are available on our Spare Parts website in the Standard Male O-Ring Kit.
Can I leave my Multi Spray Gun outside?
To extend the life of the spray gun, it is recommended that you drain the water after use and store it in frost-free conditions.
We advise tightening up the yellow bezel on the front of the spray head. Grip the spray head around the grey section, then tighten up the yellow ring by hand. If this does not resolve the issue, then the gun could be faulty. Please contact consumer services by emailing support@hozelock.zendesk.com. Please ensure you have your original proof of purchase available.
