How do I connect the sprinkler to my hose & tap?
To connect your tap and hose to the Sprinkler, please follow the below instructions:
1. Connect your hose to your tap using Threaded Outdoor Tap Connector or Threaded Outdoor Tap Connector Pro.
2. Attach your Hose End Connector to your hose, and then to the Tap Connector.
3. Attach your AquaStop Connector to the other end of the hose – this stops the water flow when you disconnect your watering accessory, without turning the tap off.
4. Finally, connect your chosen Rectangular Garden Sprinkler to the AquaStop Connector.
What size garden is this suitable for?

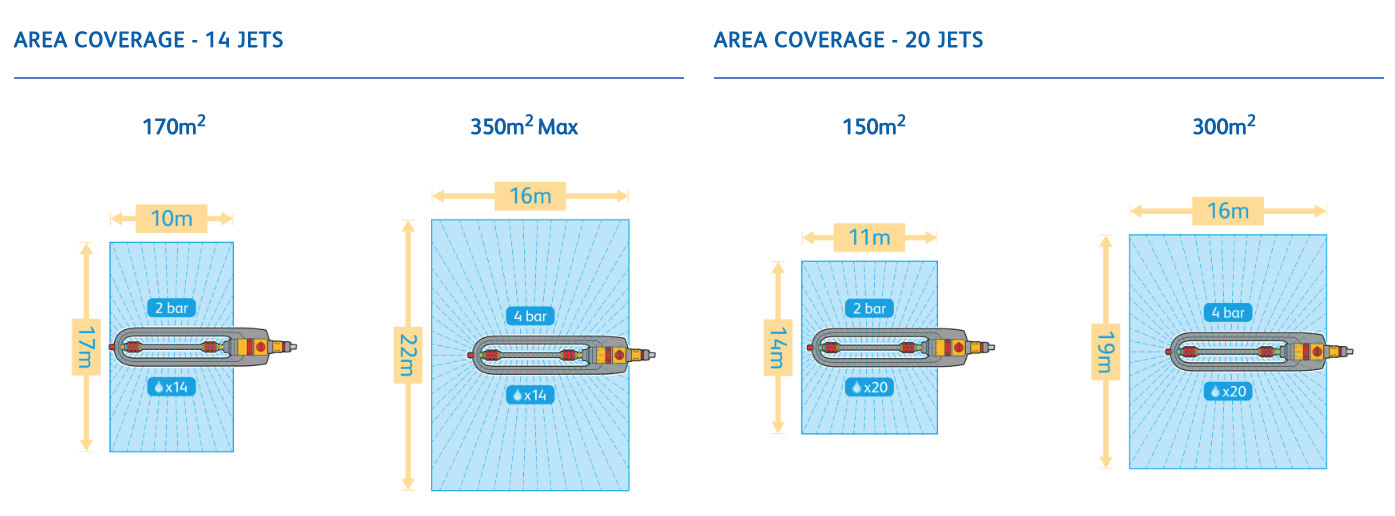

The area coverage can depend on your water pressure. However, you can adjust the coverage on the sprinklers using the red setting rings. This Sprinkler has been designed to accept all common water pressures. Please see below a guide to area coverage:
Does this sprinkler work with an expandable hose?
Yes, the sprinkler will work with an expandable hose, but it could move when the hose retracts, so it is recommended to disconnect the sprinkler from the hose as soon as you turn off the tap.
Can I attach this sprinkler to a Hozelock Hose System?
Yes, all Hozelock sprinklers can be connected to a Hozelock Reel or Cart, or to a hose which has Hozelock-compatible connectors attached.
What is the minimum pressure for the sprinkler to work efficiently?
This sprinkler has been designed to work with water pressures between 1-10 bar.
How can I reduce or increase the water coverage area?
The sprinkler can water a rectangle or a part of a rectangle. You can adjust the Width, Direction and Range.
How to adjust the width of my sprinkler?
To adjust the width of the sprinkler, rotate the adjustable jets which can be turned on and off, depending on the coverage levels needed.
How to adjust the direction of my sprinkler?
To adjust the direction of the sprinkler, simply use the red setting rings on the sprinkler to suit your garden needs.
How to adjust the range of my sprinkler?
To adjust the range of the sprinkler, adjust the water flow to target the area being watered- be it a small or a large outdoor space.
Can this Sprinkler be set to water my small lawn without moving it?
Yes. This sprinkler will cover up to 22m x 16m without needing to move it. You can adjust the size of the area by simply altering the width, direction and range.
How do I get my sprinkler to oscillate both ways?
The red settings on your sprinkler help you choose the exact area of the garden you wish to water. There are two, if one is set near the top, the sprinkler will only oscillate in one direction. To oscillate your sprinkler both ways, push both of the red settings rings down to the lowest position. This will give you maximum area coverage.
If, after adjusting this, it is still not changing direction, please contact consumer services on +44 (0) 121 313 1122. Please ensure you have your original proof of purchase available.
How do I remove the Sprinkler from my hose pipe?
To remove the hose end connector from the Sprinkler, do not twist it. Instead, hold the sprinkler firmly while gently pulling back on the connector's sleeve. This will easily release the connector from the Sprinkler.
How do I clean the spray jets on my sprinkler?
Connect the sprinkler and turn it on at the tap. Set the flow control to 45 degrees, or under. Make sure the sprinkler is not oscillating. Unscrew the cleaning tip at the top of the sprinkler, to let the water flow. Use the cleaning tip to clean out the jet holes. Finally, secure the cleaning tip back into place. Watch our maintenance video below for further guidance.
How to clean the sprinkler?
All sprinklers include a filter which can be accessed at the bottom of the sprinkler. Simply unscrew and clean the filter using water. Secure back into place.
How can I maintain my sprinkler?
Please watch our in-depth video, demonstrating how best to look after your Hozelock Aquasave Sprinkler.
If after following these suggestions the sprinkler is still not working correctly, the Sprinkler could be faulty. Please contact consumer services on+44 (0) 121 313 1122. Please ensure you have your original proof of purchase available.
